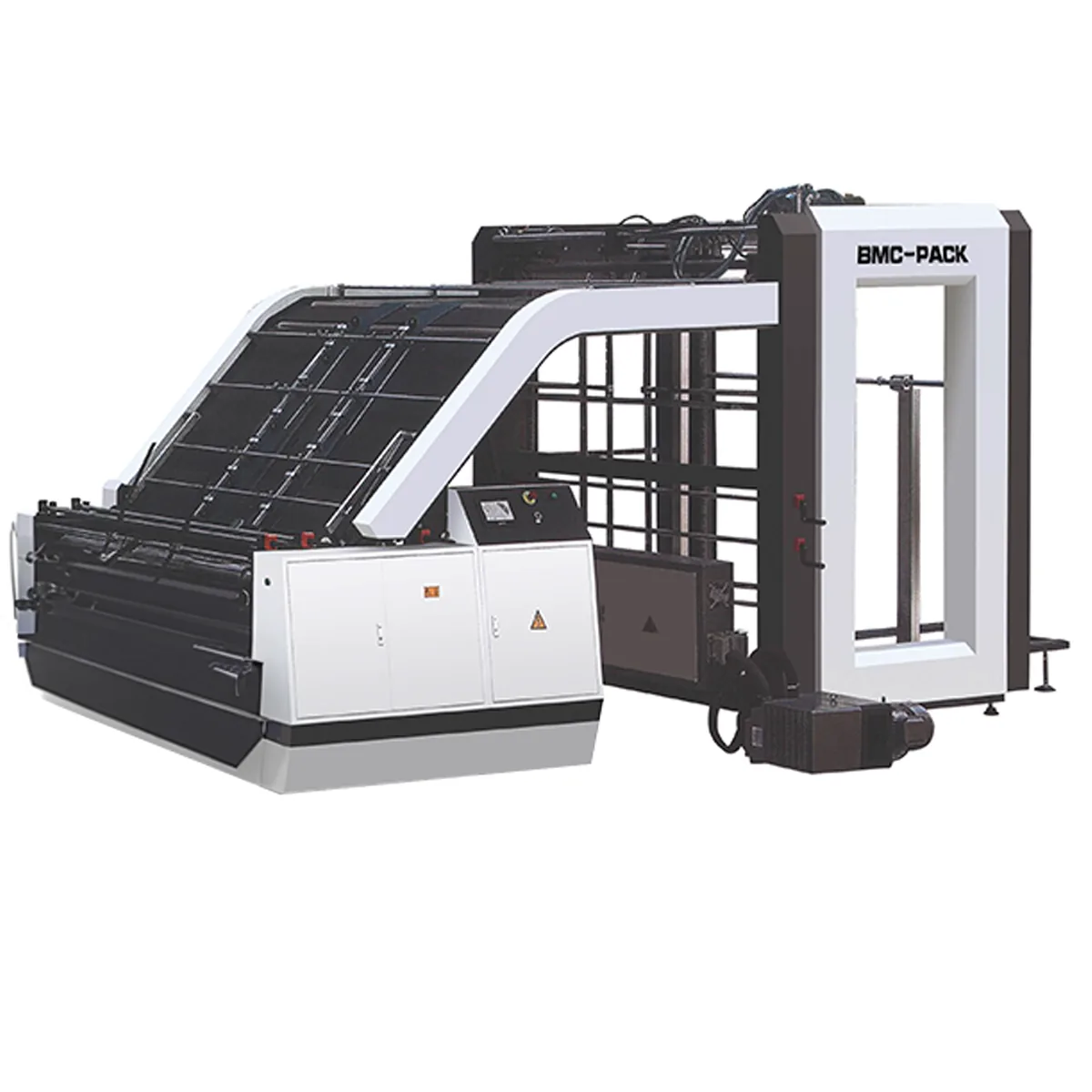

A Type Servo Automatic Flute Laminator

VIDEO

In stock

Vacuum Suction Feeding System: Accurately feeds cardboard into the machine; continuous stacking enables non-stop operation for higher efficiency.
Automatic Bottom Sheet Feeding: Suction-fed and synchronized with main machine speed for seamless tracking.
Stable Operation: Ensures precise alignment between the surface and the corrugated cardboard.
Easy Positioning: Corrugated sheet stays behind, and the liner position is easily adjustable.
Advanced Control System: Touch screen, PLC, and servo motor system ensure stability and auto fault alarm display.
Automatic Glue Circulation: Reduces glue waste and improves efficiency.
Optimized Roller Design: Prevents glue splatter at high speeds.
Quick Pressure Adjustment: Single-side adjustable pressure rollers for fast setup.
Easy Cleaning: Rocker-controlled wash roller movement for simple maintenance.
Smart Counter: Accurately tracks production volume.

Request a Quote → View all in this range

Specifications

Technical specifications

Specification	BMC-1300FA3	BMC-1600FA3
Max size	1300mm×1250mm	1600mm×1250mm
Min size	400mm×400mm	400mm×400mm
Top paper thickness	130-800g	130-800g
Bottom sheet thickness	2/4 ply A/B/C/E/F Flute	2/4 ply A/B/C/E/F Flute
Max speed	0-8000pcs/h, 5000m/h	0-8000pcs/h, 5000m/h
Precision	±1mm	±1mm
Power	14 kW	14 kW
Size	13.5m×2m×2.9m	13.5m×2.25m×2.9m
Weight	About 4.5 tons	About 5 tons

FAQ

Frequently Asked Questions

The machine achieves up to 8,000 sheets per hour with servo motor control ensuring consistent registration and gluing precision even at peak speed.

Servo drives replace conventional chain-and-gear systems, giving precise speed synchronization between the feeder, gluer and conveyor. This cuts misalignment scrap and maintains ±1.5 mm registration accuracy across the full speed range.

Available widths up to 1,450 mm; maximum sheet length 1,200 mm. Minimum size is 450 × 450 mm. Contact BMC for your specific paper-size requirements.

A, B, C, E and F flute profiles up to 10 mm, covering single-wall and most double-wall corrugated grades.

Yes — every machine ships with on-site installation, commissioning and operator training. After-sales technical support is available throughout the machine's service life.
