| Specification | Value |
|---|---|
| Working Width | 1,400 / 1,600 / 1,800 / 2,200 mm |
| Design Speed | Up to 150 m/min |
| Working Speed | Up to 120 m/min |
| Ply | 3 / 5 / 7 |
| Flute Types | A, B, C, E, BC |
| Corrugated Roller Diameter | 280 mm / 320 mm |
| Total Line Length | 50–100 m |
| Drying Oven Length | 7.8 m |
| Heating Sections | 9–18 blocks |
| Heating Type | Steam / Thermal oil |
| Total Power | 100–200 kW |
| Control System | PLC + servo, central console |

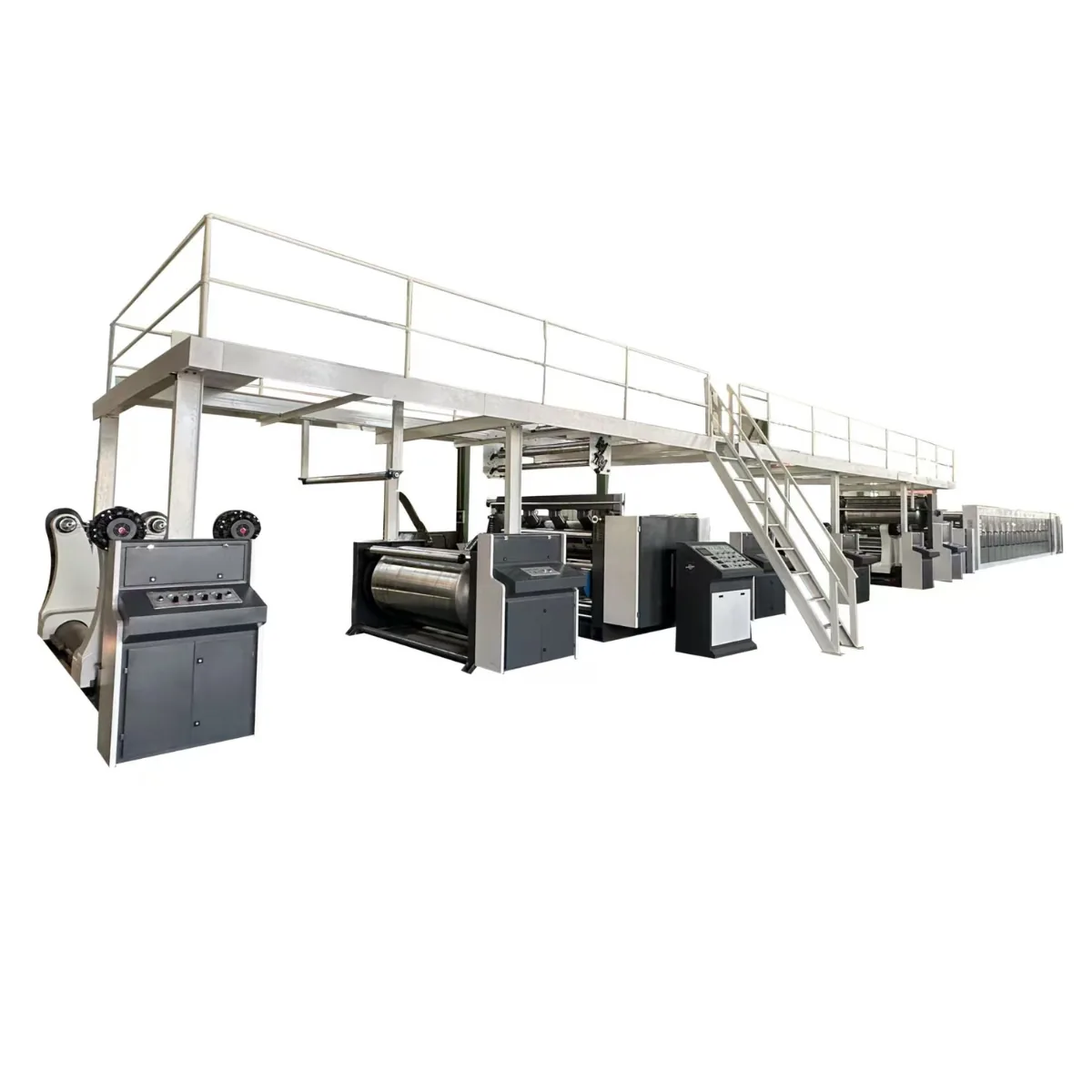

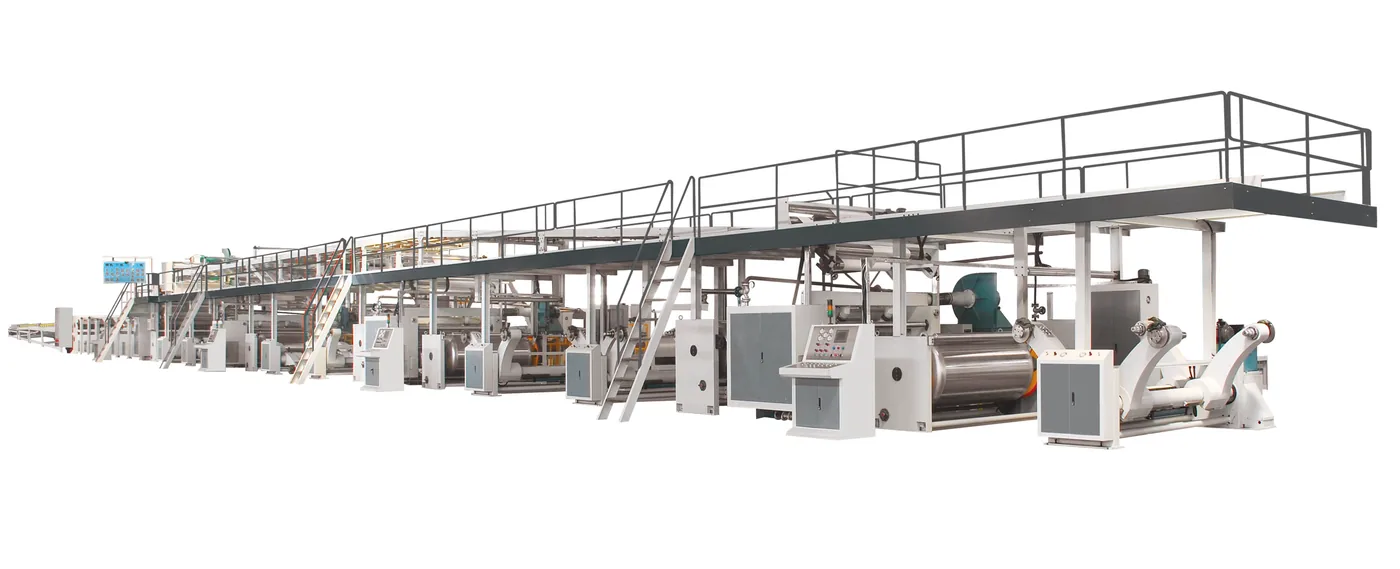

The Eco line is built for steady, cost-efficient output. It is configured for up to 150 m/min design speed and 120 m/min working speed with a 320 mm roller diameter, or 120/100 m/min with a 280 mm roller.

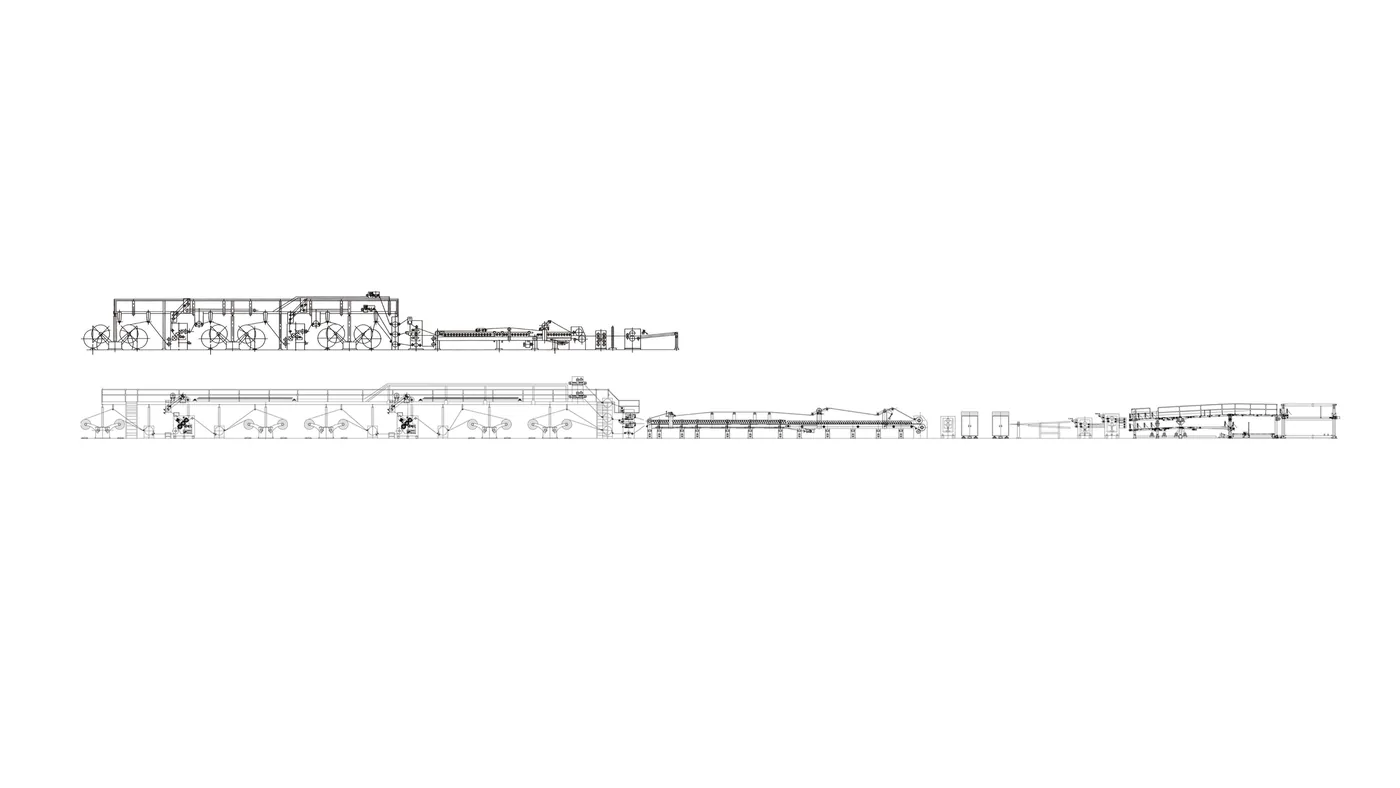

The Eco line shares the same process and machine layout but is optimised for a lower investment: smaller corrugating rollers (280/320 mm) and moderate speeds (up to 150 m/min). The Advanced line reaches up to 200 m/min with 360/380 mm rollers for higher-volume plants.
Yes. The line is configured for multi-ply with the corresponding number of single facers. Switching between 3, 5 and 7-ply is done by engaging or bypassing the relevant single-facer units.
The line supports A, B, C, E and BC (double-wall) flute profiles, with standard working widths of 1,400 mm, 1,600 mm, 1,800 mm and 2,200 mm. Corrugated rollers are interchangeable and can be swapped in approximately 20 minutes.
Yes — installation, commissioning and operator training are included with every line. Our engineers will stay on-site until the line reaches target output, with ongoing after-sales support available.
