Flute Lamination Machine

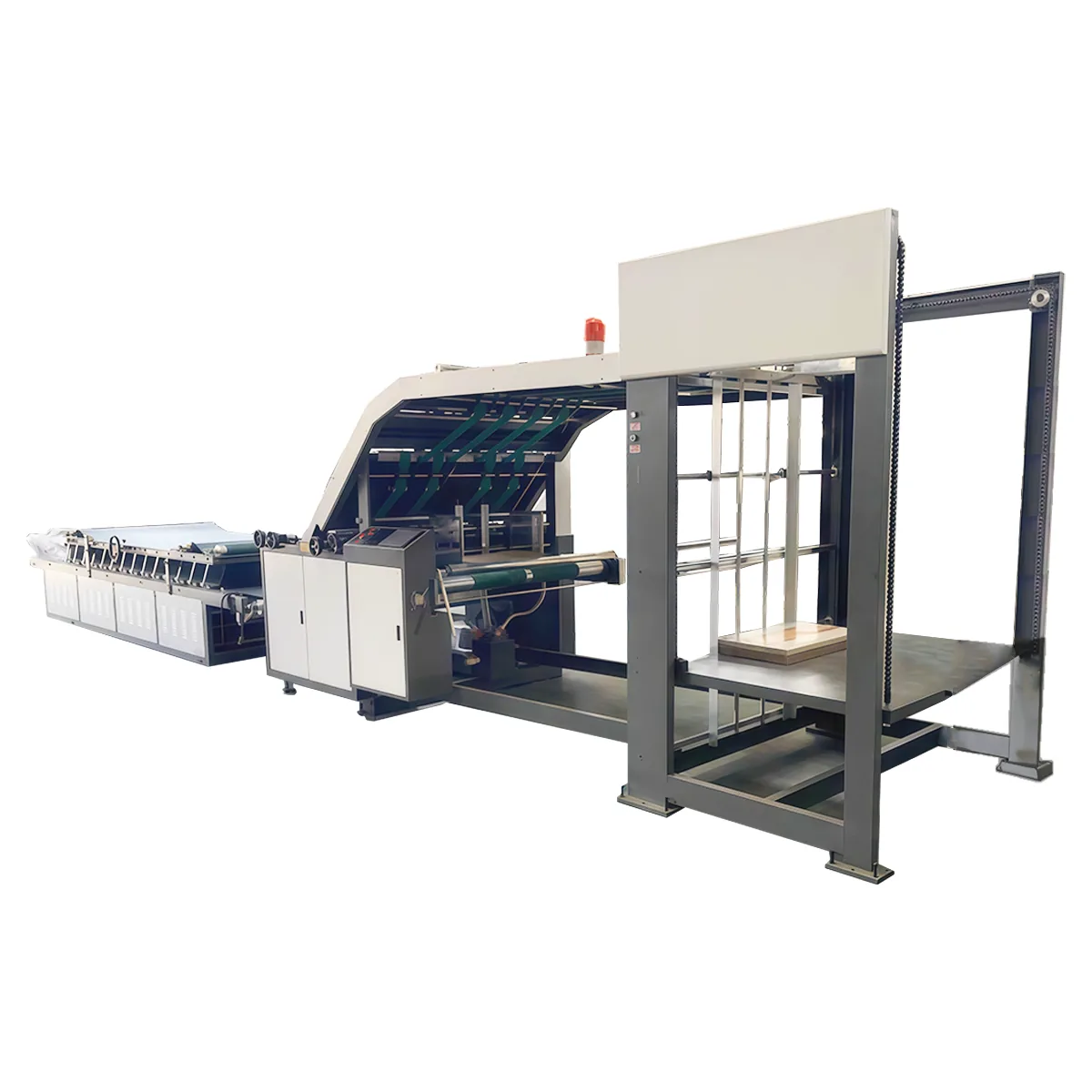

H-I Type Servo Semi-Automatic Flute Laminator

H-I Type Servo Semi-Automatic Flute Laminator
VIDEO
In stock

USE AND CHARACTERISTICS

  • Industry First: Independently developed; the first manufacturer of servo semi-automatic flute laminators
  • Advanced Control System: PLC control ensures precise, stable operation with improved speed and automatic fault alarms
  • Taiwan Servo Motor: Replaces brake clutch and electronic eye, enabling independent PLC and servo control
  • Automatic Corrugated Feeding: Feeds corrugated sheets in sync with liner for smooth operation
  • Accurate Lamination: Stable performance with precise alignment of surface and corrugated cardboard; easy adjustment of surface sheet position
  • Efficient Gluing System: Automatic and circulatory glue application reduces waste
  • Optimized Rollers: Scientifically designed to prevent glue splatter at high speed
  • Quick Adjustment: Unilateral pressure roller adjustment for fast setup
  • Easy Cleaning: Rocker-controlled wash roller simplifies maintenance
  • Accurate Counter: Built-in counter for precise production tracking
Request a Quote → View all in this range
Specifications

Technical specifications

SpecificationBMC-1300FSA3-HIBMC-1600FSA3-HI
Max size1300mm×1250mm1600mm×1250mm
Min size360mm×360mm360mm×360mm
Economic speed0–100pcs/min0–100pcs/min
Precision±1mm±1mm
Power9.5 kW9.5 kW
Size12m×1.95m×2.43m12m×2.25m×2.43m
WeightAbout 3 tonsAbout 3.5 tons
FAQ

Frequently Asked Questions

H-I designates the first tier in BMC's servo semi-automatic flute laminator series. "Semi-automatic" means the operator manually places corrugated boards on the bottom feed table; all other functions — paper suction, gluing and conveying — are servo-controlled.

Two working widths: BMC-1300FSA3-HI (max 1,300 × 1,200 mm) and BMC-1600FSA3-HI (max 1,600 × 1,200 mm). Face paper table capacity is 1,000 kg on both models.

A, B, C, E and F flutes up to 8 mm thickness, covering the most widely used single-wall packaging grades.

Servo motors on the top-feed and conveyor units synchronize paper transport to within ±1.5 mm, eliminating the slip and speed variation typical of belt-only systems and reducing sheet misalignment waste.

Yes. BMC engineers handle on-site installation, commissioning and operator training, and remain on-site until target output is achieved. Ongoing after-sales support is provided globally.
