| Specification | BMC-1300FSA3-HIII | BMC-1600FSA3-HIII |
|---|---|---|
| Max size | 1300mm×1200mm | 1600mm×1200mm |
| Min size | 360mm×360mm | 360mm×360mm |
| Economic speed | 0–80pcs/min | 0–80pcs/min |
| Precision | ±1mm | ±1mm |
| Power | 7 kW | 7 kW |
| Size | 9mx1.95mx1.7m | 9mx2.25mx1.7m |
| Weight | About 2 tons | About 2.5 tons |

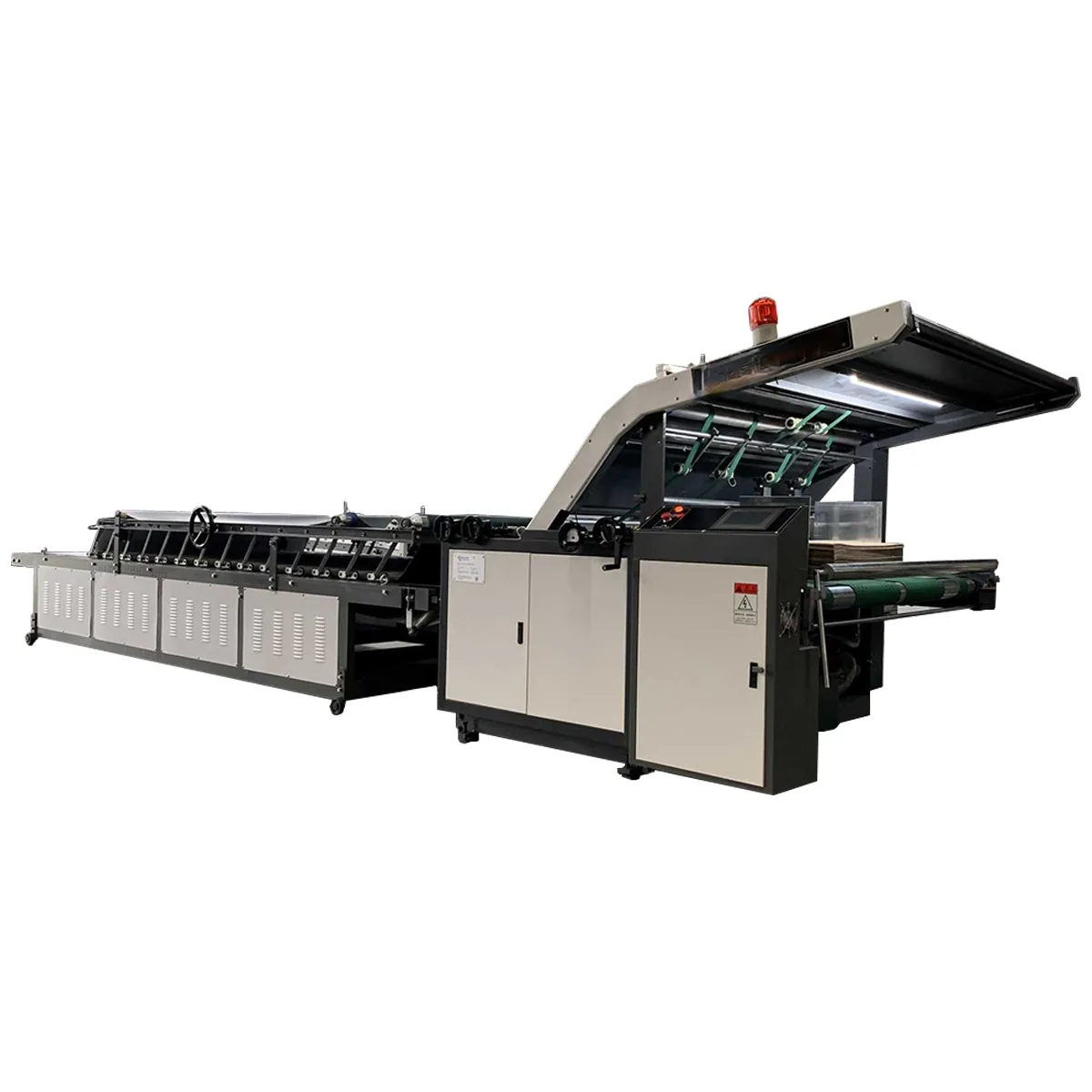

The H-III is an entry-level semi-automatic laminator for operations that prioritize cost efficiency. Servo assistance on the top paper feed ensures consistent registration while the corrugated bottom board is placed manually.
BMC-1300FSA3-HIII (max 1,300 × 1,200 mm) and BMC-1600FSA3-HIII (max 1,600 × 1,200 mm), both with 1,000 kg face paper table capacity.
Face paper from 140–600 g/m²; corrugated boards with A, B, C, E and F flutes up to 8 mm in total thickness.
±1.5 mm lamination registration, sufficient for standard packaging grades and retail display boxes.
Yes. BMC provides on-site installation, commissioning and full operator training, with after-sales support available throughout the machine's service life.
