| Specification | NDRT2-920FSDC | NDRT2-1228FSDC | NDRT2-1428FSDC |
|---|---|---|---|
| Design speed (pcs/min) | 120 | 120 | 120 |
| Working speed (pcs/min) | 100 | 100 | 100 |
| Max feeding size (mm) | 900×2000 | 1200×2400 | 1400×2400 |
| Min feeding size (mm) | 280×650 | 350×680 | 400×680 |
| Max Depth of slotting (mm) | 300 | 320 | 410 |
| Registration precision (mm) | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Die cutting accuracy (mm) | ≤±0.5 | ≤±0.5 | ≤±0.5 |
| Printing plate thickness | 3.94 | 3.94 | 3.94 |
| Max.printing area (mm) | 2–12 | 2–12 | 2–12 |
| Min.slotting interval (mm) Normal | 150×150×150×150 | 150×150×150×150 | 150×150×150×150 |
| Min.slotting interval (mm) Reverse | 260×70×260×70 | 260×70×260×70 | 260×70×260×70 |
Type II runs at a design speed of 120 pcs/min (working speed 100 pcs/min), compared to Type I at 200/180 pcs/min. Both share the same lead edge feeder, hardened gears (HRC >60), and chromium-plated shafts. Type II is suited to facilities with moderate-volume requirements where the cost-efficiency of a lower-speed machine is preferred.

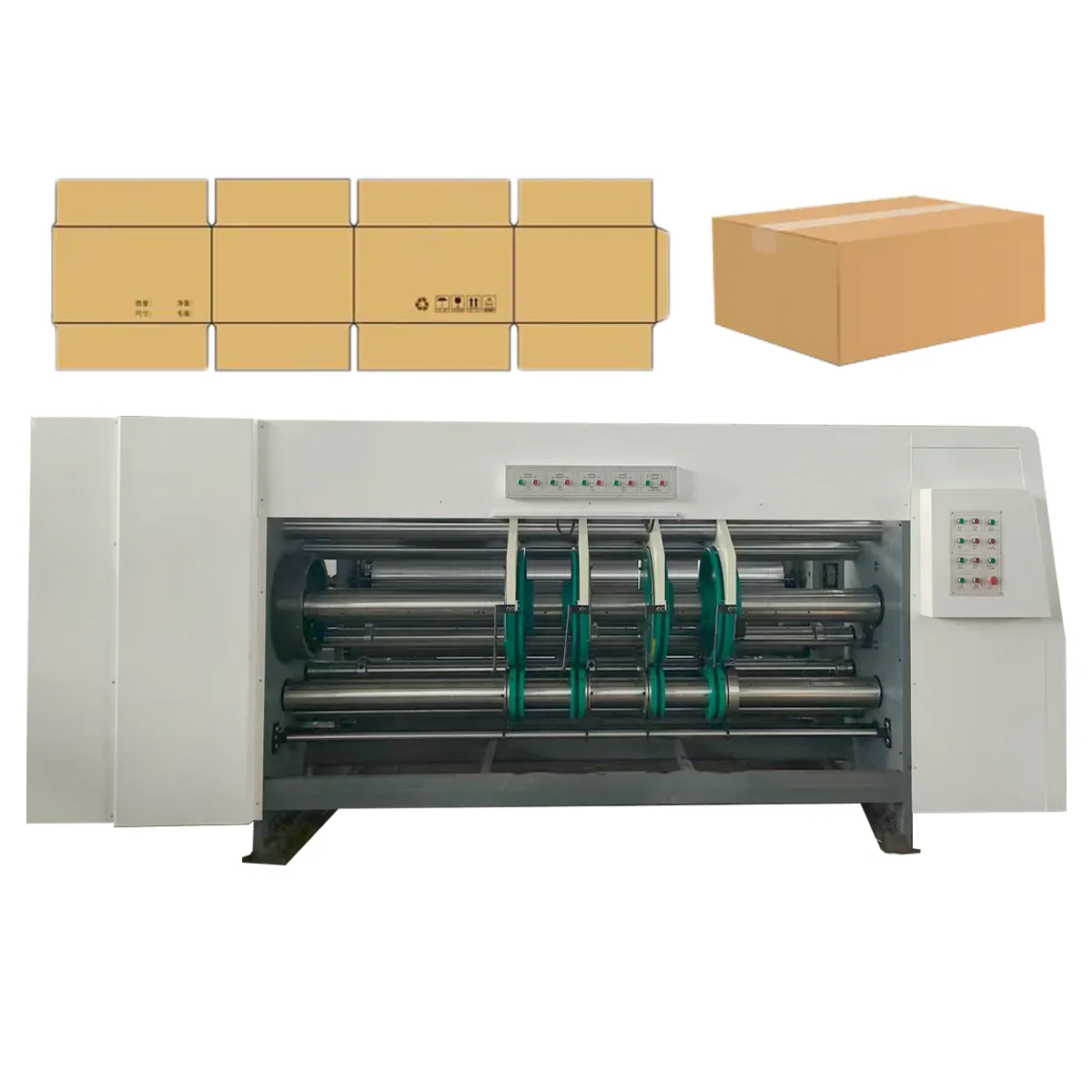

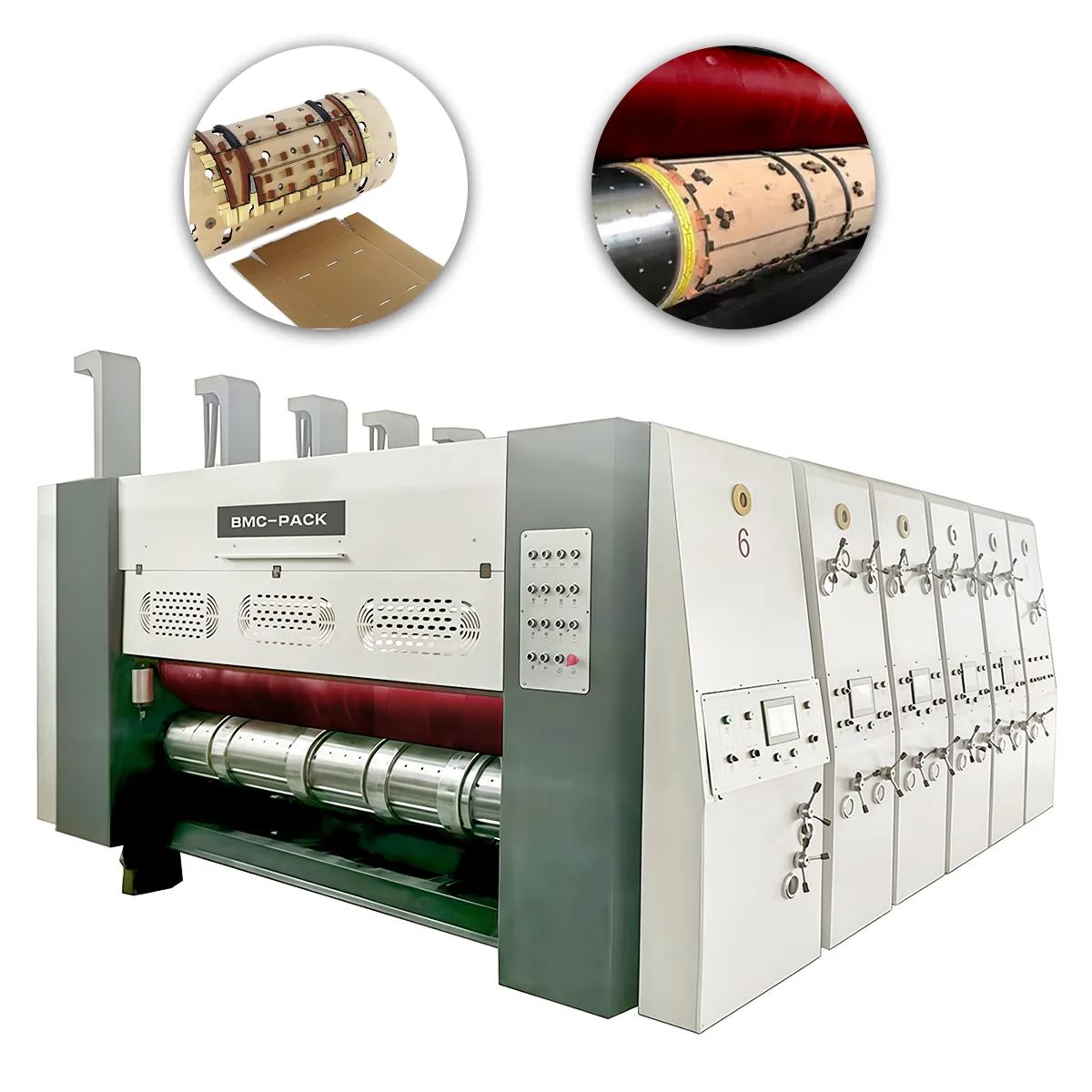

The machine processes B, C and E-flute single-wall and BC double-wall corrugated board. Standard printing plate thickness is 3.94 mm. Adjustable clearances on the slotter and die cutter units allow tuning for different board weights and thicknesses.
Auto zero setting on the feeder, combined with adjustable clearances (manual or electric) on the slotter and print units, enables fast, accurate order changeovers. The machine is designed specifically for easy operation with fast job switching.
Registration precision is ≤±1.5 mm and die cutting accuracy is ≤±0.5 mm. Drive gears ground and hardened to HRC >60 maintain these tolerances consistently over extended production runs.
Yes — installation, commissioning and operator training are included with every machine. Our engineers remain on-site until the machine reaches target output, with ongoing after-sales support and spare parts available.
