| Specification | NDSA-3600SSM |
|---|---|
| Max (A + B) × 2 | 3600 mm |
| Min (A + B) × 2 | 600 mm |
| Max C | 350 mm |
| Min C | 65 mm |
| Min (C + D + C) | 350 mm |
| Max (B) | 700 mm |
| Min (B) | 150 mm |
| Max (A) | 1100 mm |
| Min (A) | 150 mm |
| Power | 4 kW |
| Machine size | 2800 × 2600 mm |
| Weight | 2500 kg |
| Nail distance | 20 – 120 mm |
| Speed | 600 nail/min |
| Nail model # | 17 | 18 |
| Nail quantity | 1 – 99 |
| Servo AC drive | Mitsubishi Japan |
| Stitching head | Zhuhai |
| Servo Motor | Mitsubishi Japan |
| Speed | 500–600 Nails/min |
| Synchronous pulley | Foshan |
| Precision | 1 mm |
| PLC | OMRON Japan |
| Head reducer | Xinbao Japan |
| Start Method | Sensor or foot switch |
| Contactor | Shili Taiwan |
| Gear reducer | Zhejiang |
| Stitching Model | Single piece |
| Relay | Schneider French |
| Synchronous belt | Zhejiang Sanwei |
| Touch screen | Siemens German |
| Magnetic valve | YDK Taiwan |
The NDSA-3600SSM handles a maximum (A+B)×2 of 3600mm down to a minimum of 600mm, with machine dimensions of 2800 × 2600 mm overall, suiting a wide range of single-piece carton box sizes.
It stitches at 600 nails/min with a nail distance range of 20–120mm and a nail quantity of 1–99 per box, giving flexibility for different box specifications.

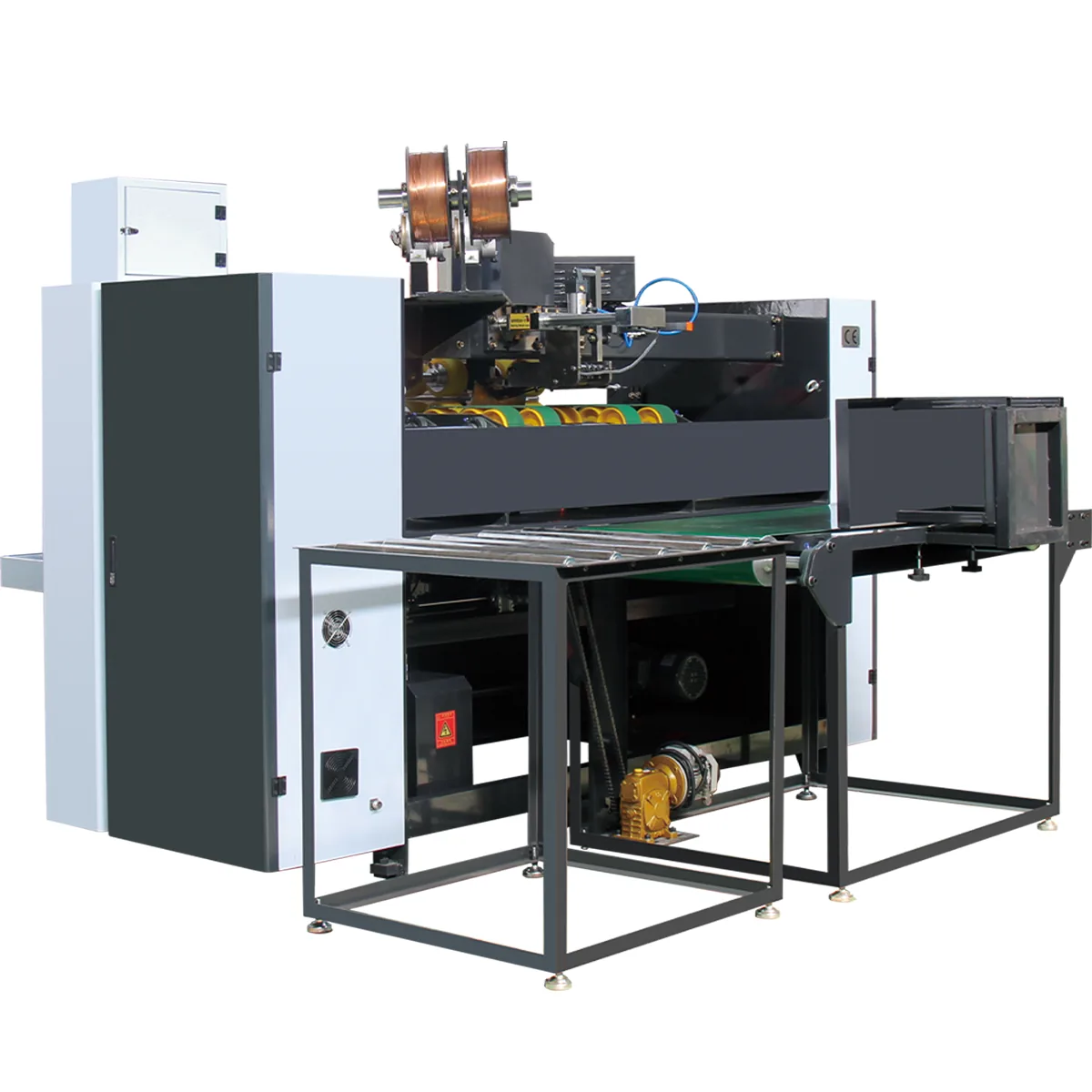

This model nails a single carton blank into its finished box shape in one pass — supporting single, double, and reinforced nailing patterns with automatic counting and bundle output.

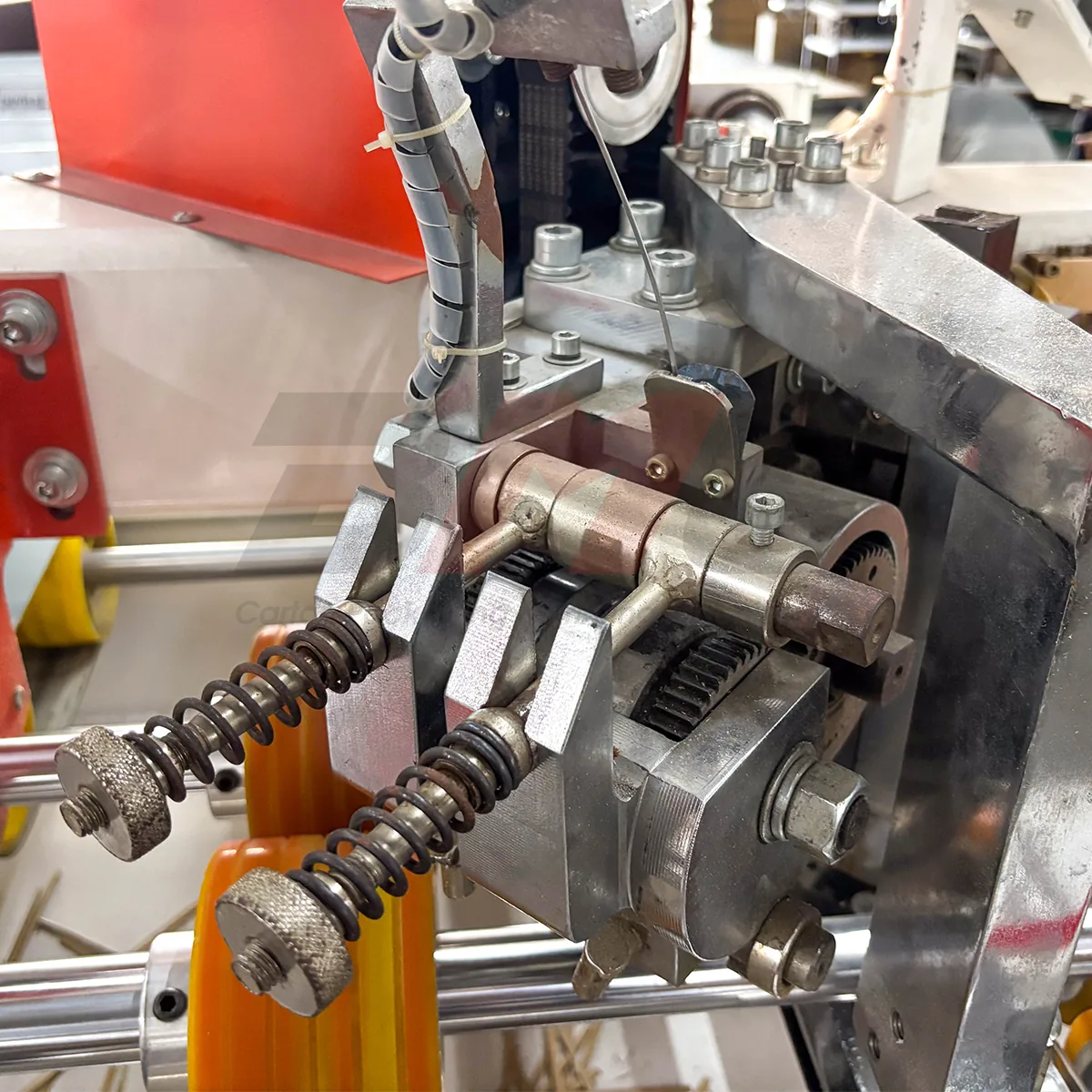

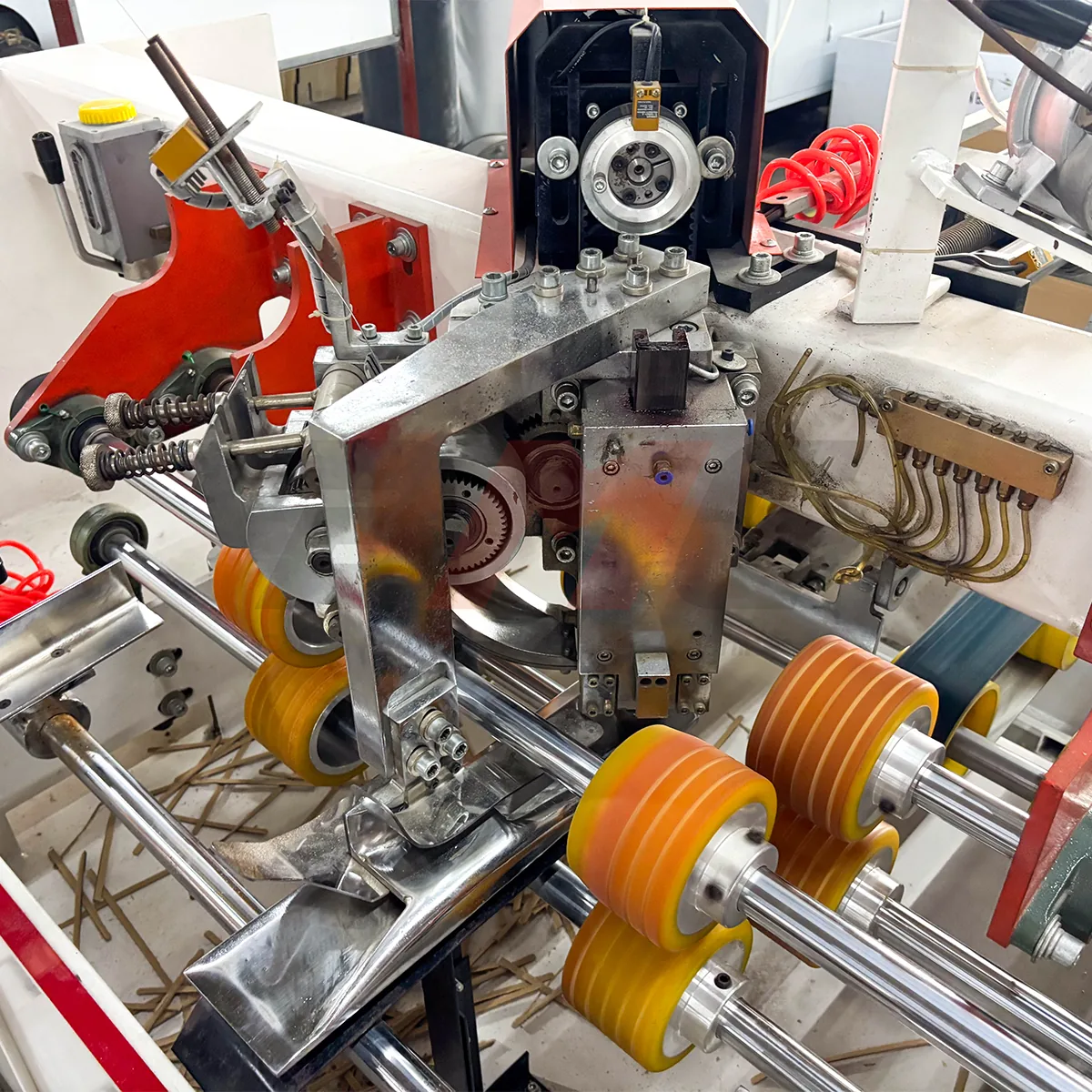

It runs on a Mitsubishi Japan servo AC drive and servo motor, an OMRON Japan PLC, a Siemens German touch screen, and a Zhuhai stitching head, with 4kW total power and stitching precision of 1mm, started by sensor or foot switch.
Yes — installation, commissioning and operator training are included with every machine, with after-sales support available.
