| Specification | NDVT-920FFG | NDVT-1224FFG |
|---|---|---|
| Max Width A (mm) | 1000 | 1100 |
| Min Width A (mm) | 150 | 150 |
| Max Width B (mm) | 1000 | 1100 |
| Min Width B (mm) | 150 | 150 |
| A + B Min (mm) | 300 | 300 |
| Max Length C (mm) | 2420 | 2720 |
| Min Length C (mm) | 620 | 650 |
| Max Length F (mm) | 2500 | 2800 |
| Min Length F (mm) | 660 | 690 |
| X Min (mm) | 80 | 80 |
| Max Height H (mm) | 900 | 1200 |
| Min Height H (mm) | 350 | 350 |
| Max Print Size (mm) | 900 x 2500 | 1200 x 2800 |
| Min Print Size (mm) | 300 x 650 | 350 x 690 |
| Servo Qty | 8 | 8 |
| Designed Speed (pcs/min) | 400 | 350 |
| Working Speed (pcs/min) | 350 | 300 |
| Plate Thickness (mm) | 3.94 | 3.94 |
| Suitable Corrugated Thickness (mm) | 2~11 | 2~11 |
| Print Precision (mm) | ± 0.1 | ± 0.1 |
| Slot Precision (mm) | ± 1.0 | ± 1.0 |
| Die Cutting Precision (mm) | ± 1.0 | ± 1.0 |
| Fold Gluing Precision (mm) | ± 1.5 | ± 1.5 |

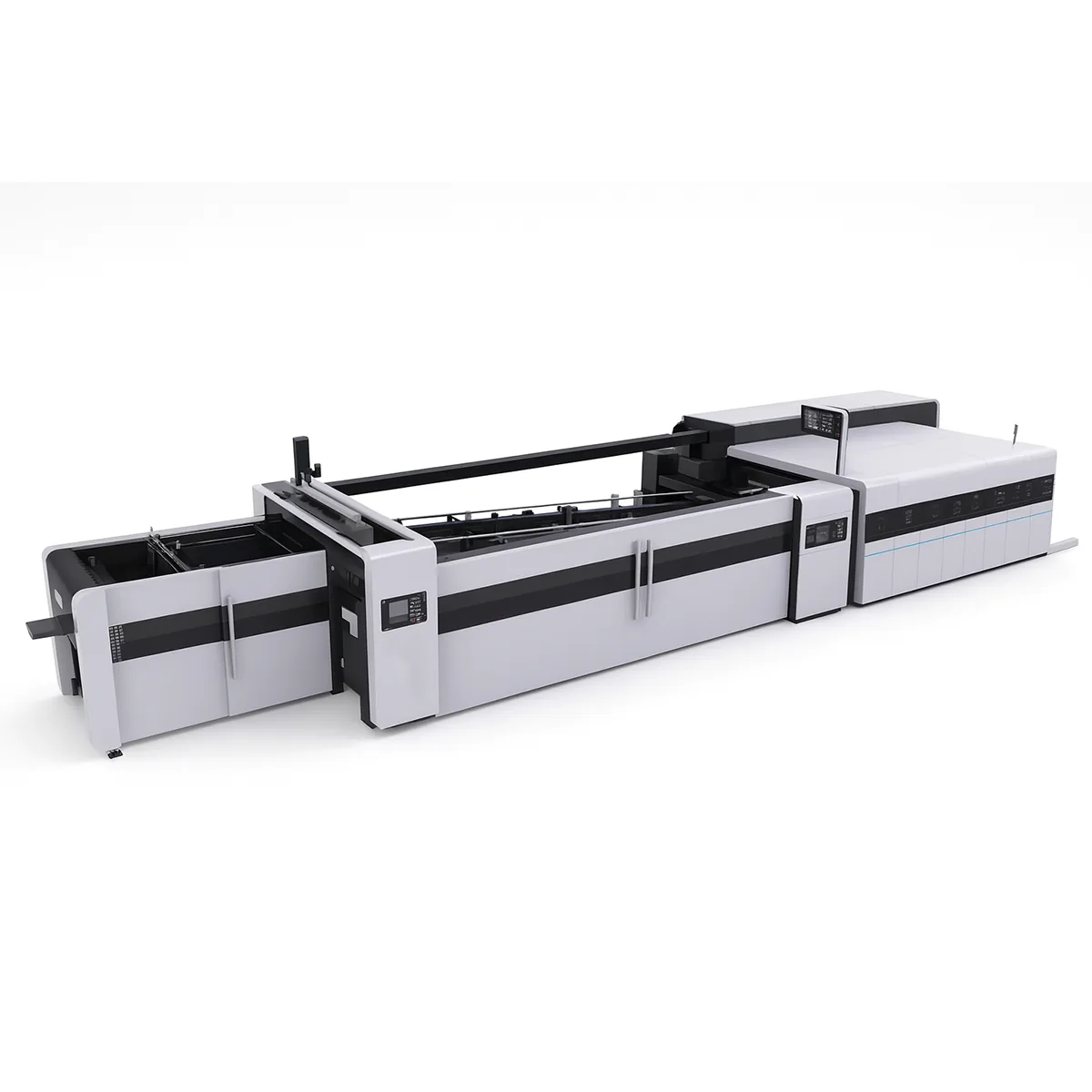

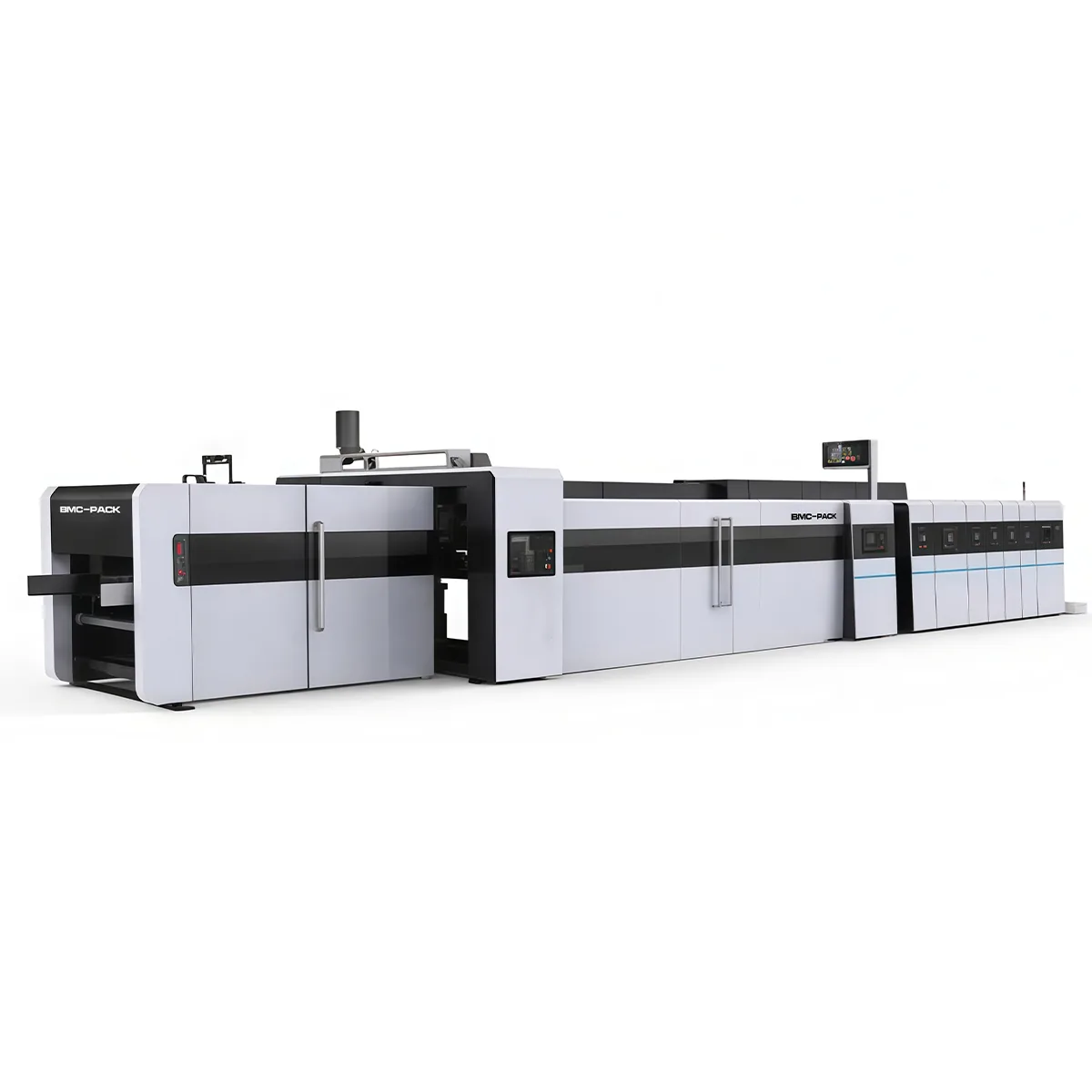

A standard flexo SDC produces flat die-cut blanks that must be folded and glued on a separate folder-gluer machine. This box line adds an inline folder-gluer unit — so finished, glued, counted boxes come out of a single machine. This eliminates the cost of a separate folder-gluer, reduces floor space, and removes the material-handling step between the two machines.
Print precision is ±0.1 mm — the highest in the BMC flexo range — enabled by a ceramic vacuum transfer wheel, servo-driven phase control, and motorized phase zero plate alignment. Fold gluing precision is ±1.5 mm. With 8 servo motors coordinating all units, the line maintains these tolerances at its full working speed of 350 pcs/min.
Maximum print size is 900×2,500 mm (920 model) or 1,200×2,800 mm (1224 model). Minimum print size is 300×650 mm and 350×690 mm respectively. Box height (H) ranges from 350 mm to 900/1,200 mm, covering a wide range of RSC, die-cut and folder-glued box styles.
Fold gluing precision is ±1.5 mm. The creasing-slotting unit is specifically engineered to prevent creasing line bursts — the main cause of misaligned folds — so boxes arrive at the folder-gluer stage with clean, consistent crease lines that fold accurately at high speed.
Yes — installation, commissioning and operator training are included with every machine. Our engineers remain on-site until the line reaches target output. The fully automatic control system with remote maintenance capability also allows our team to support troubleshooting remotely after handover.
