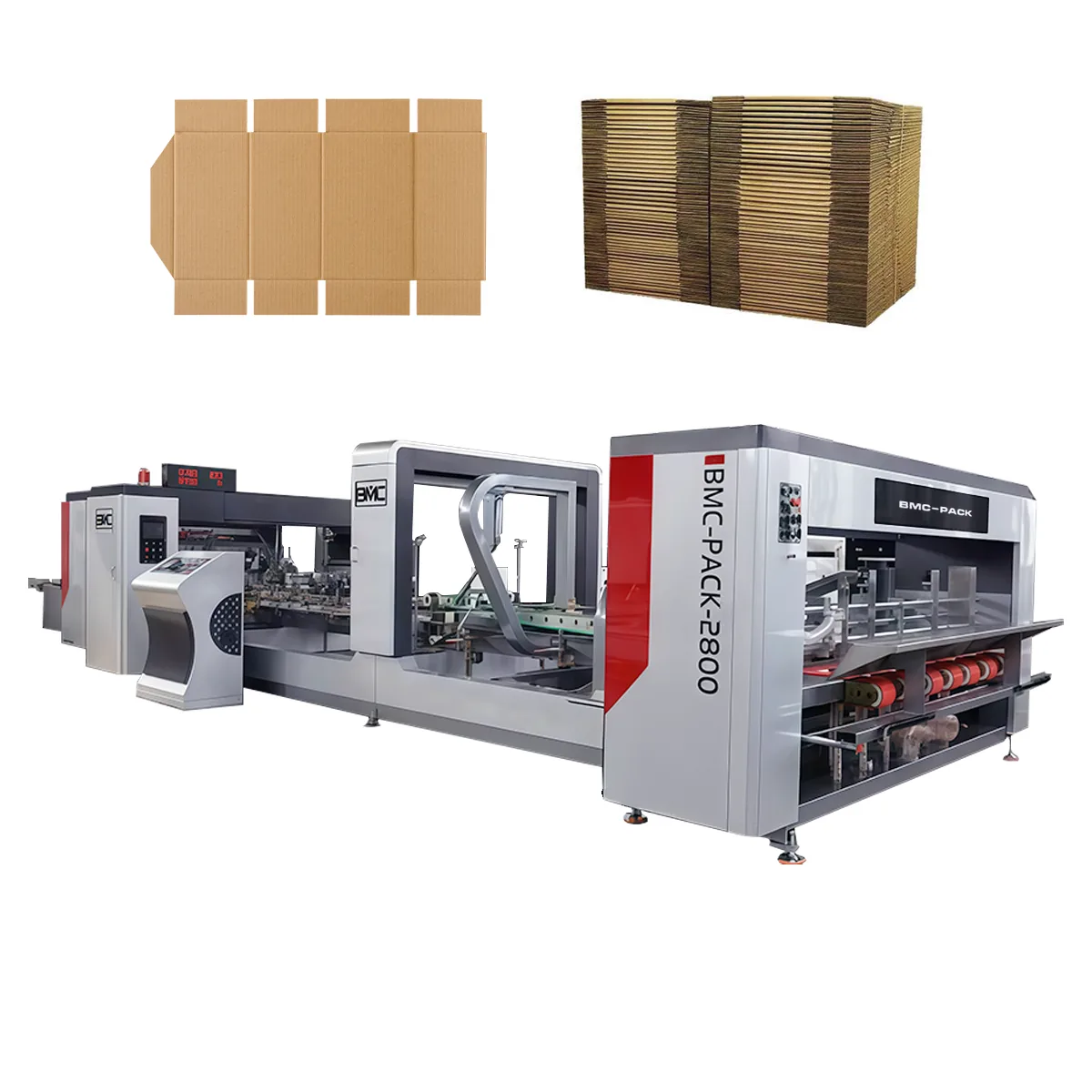

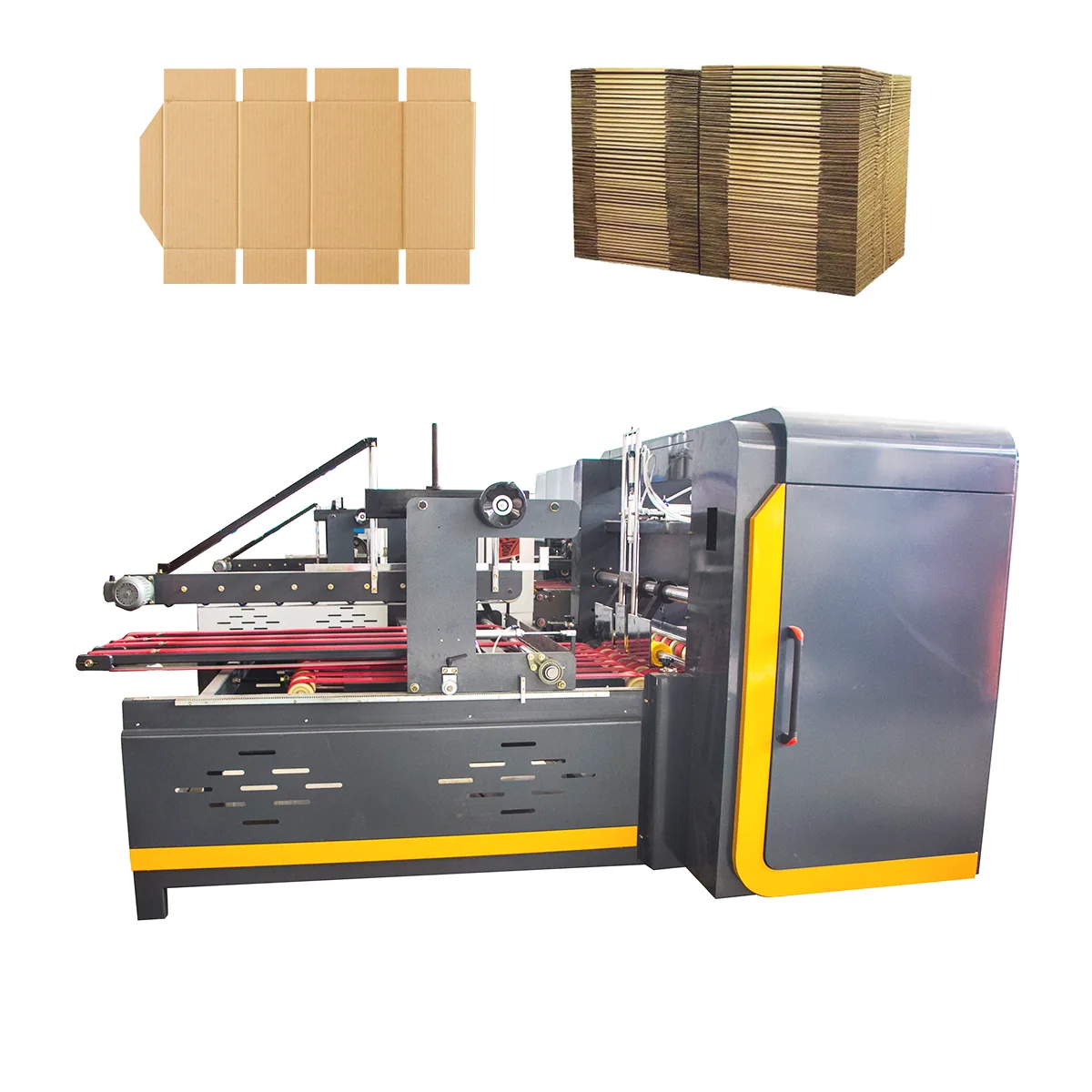

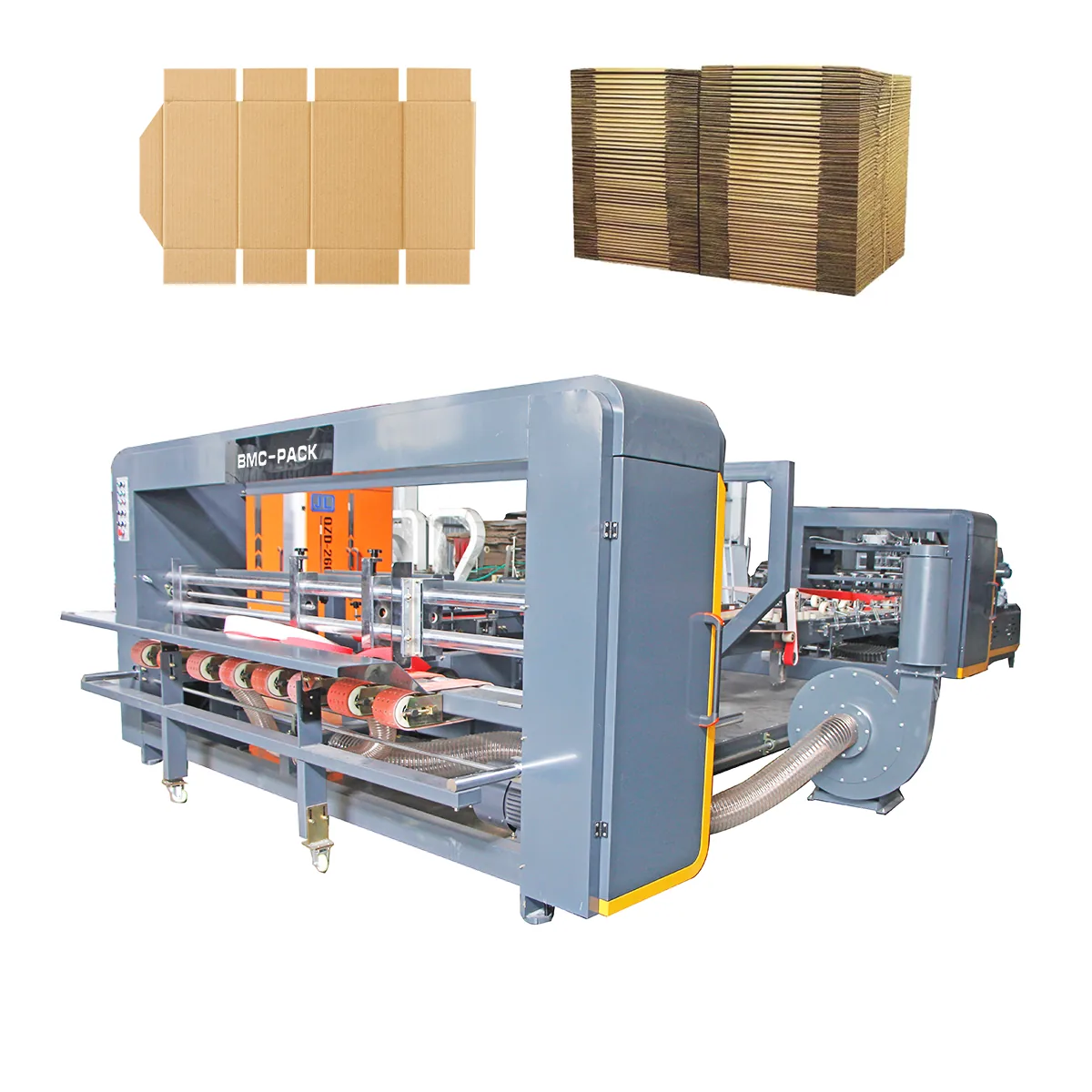

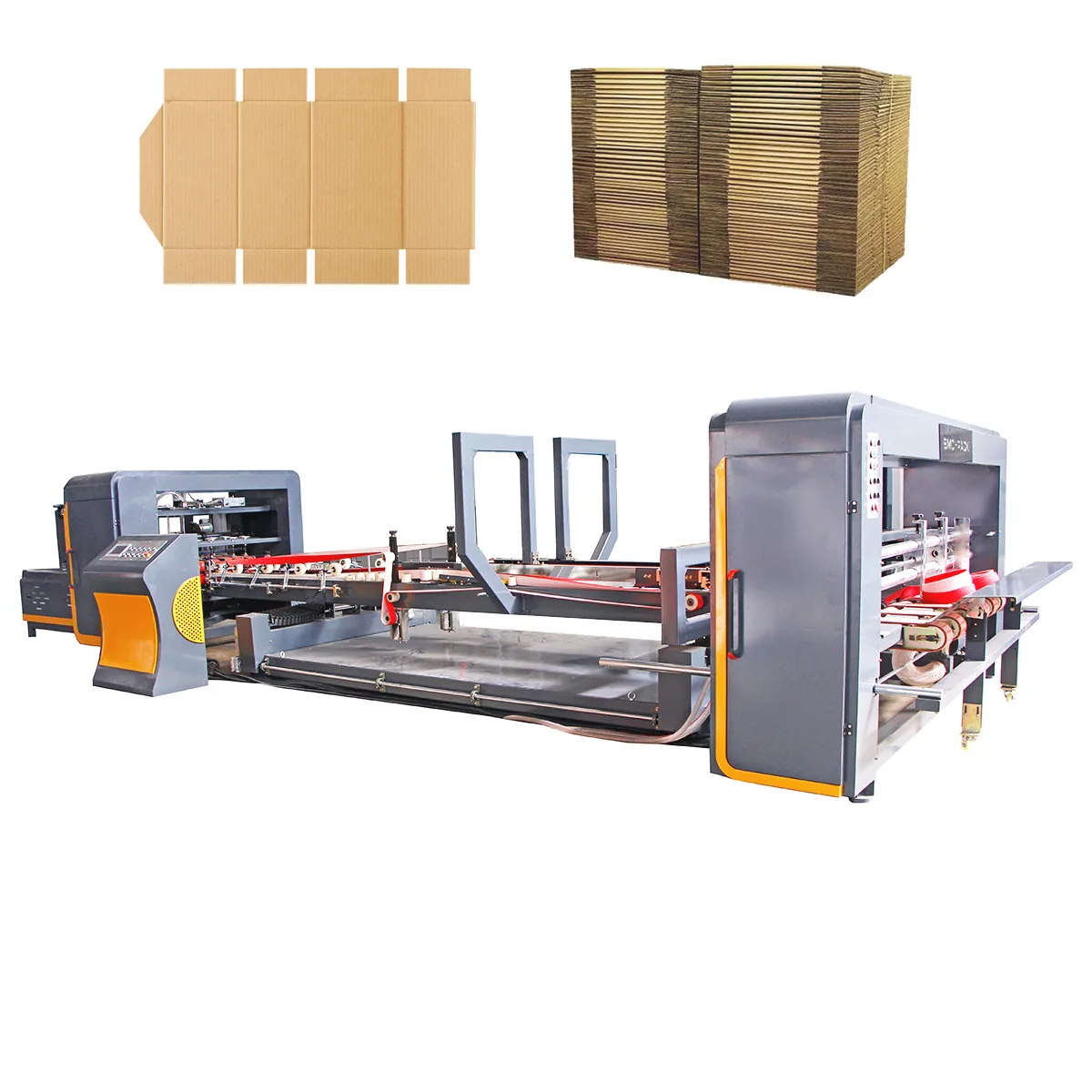

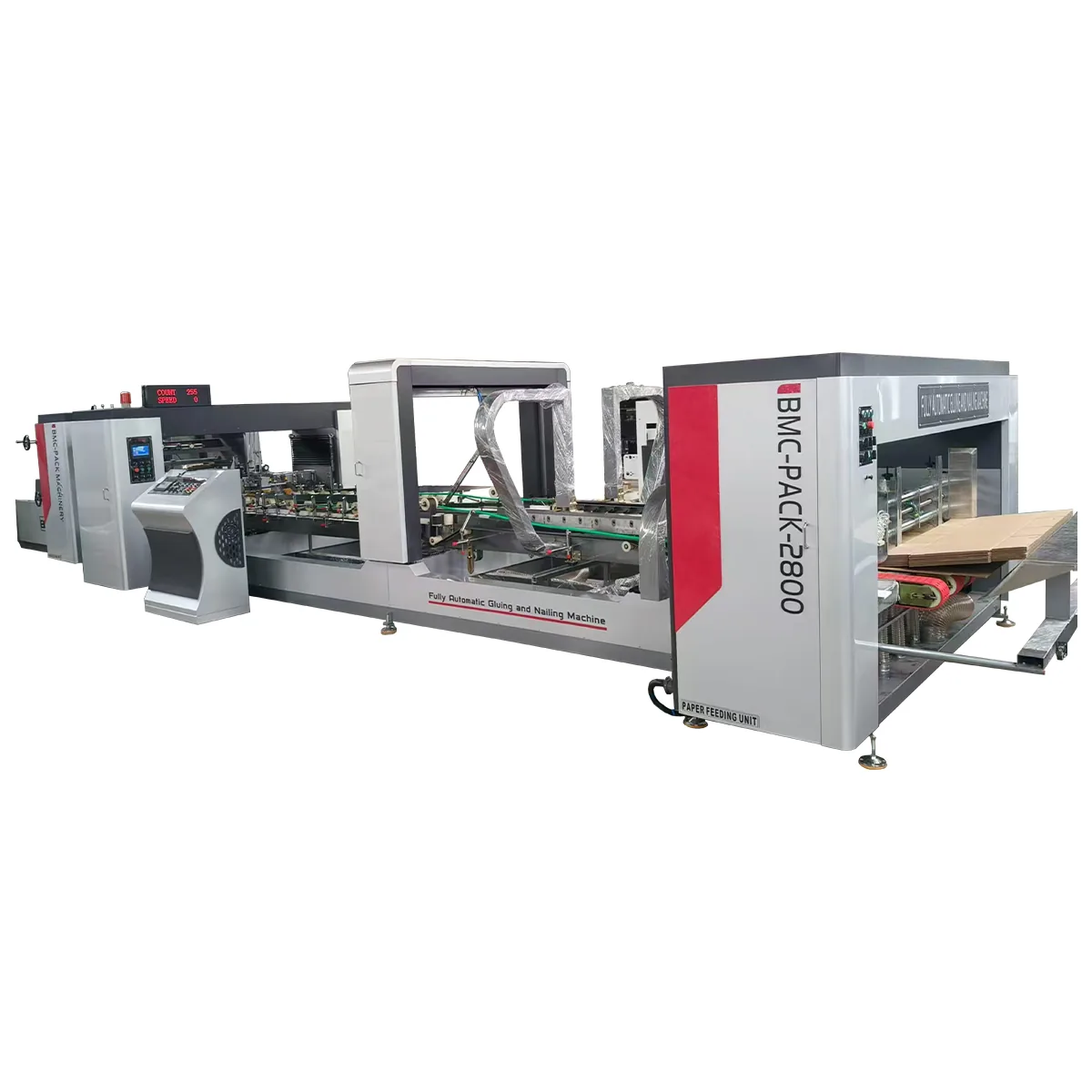

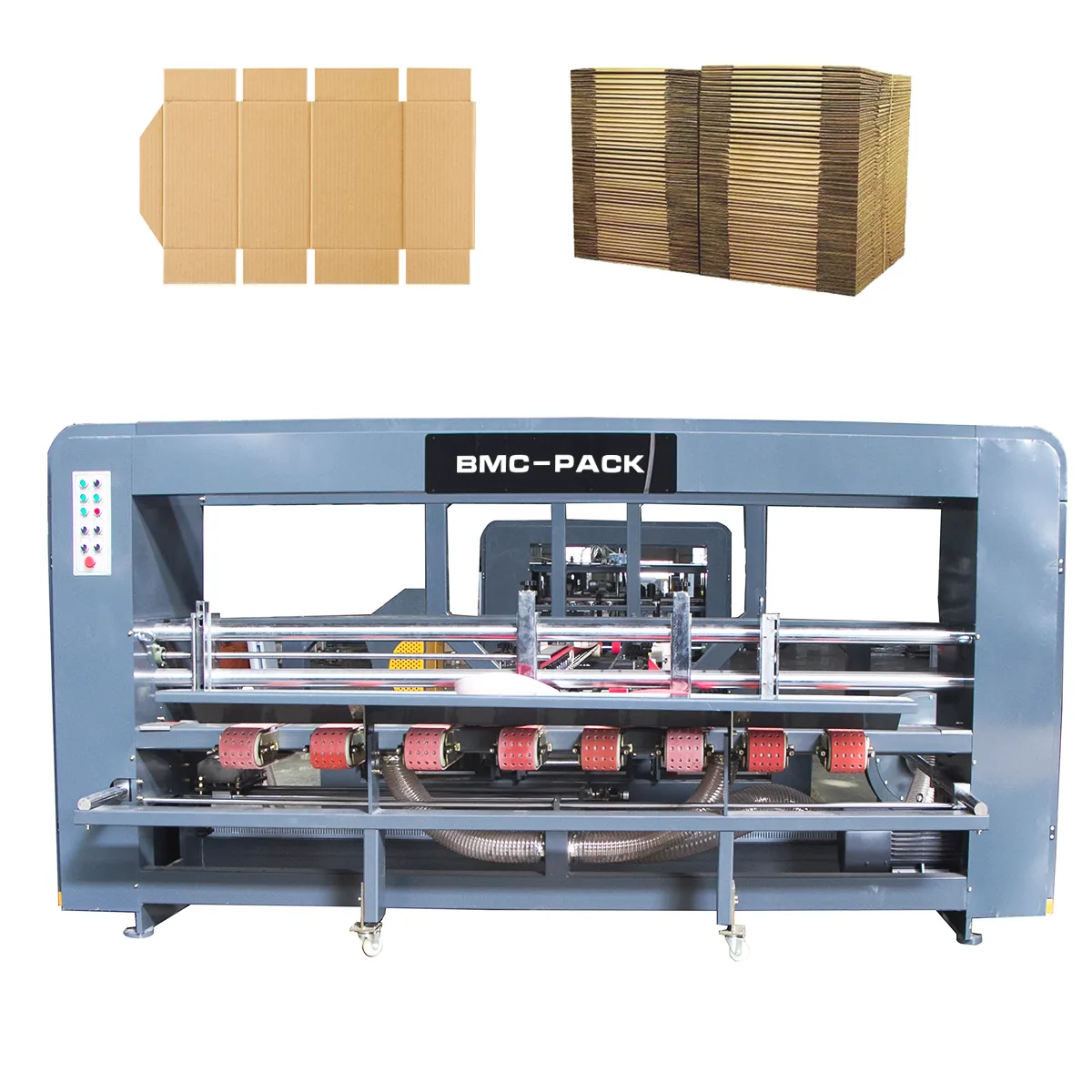

Auto Set Automatic Folder Gluer And Stitcher Machine

Auto Set Automatic Folder Gluer And Stitcher Machine
VIDEO
In stock

Auto Set Automatic Folder Gluer And Stitcher Machine

  • Automatic glue box machine, this machine compared with manual glue box can save a lot of artificial
  • saving the cost of half glue, and glue is not glue, small investment, low malfunction
  • can reduce the dependence on skilled workers, but also save the production space
  • The machine is mainly composed of A. Automatic cardboard feeding; B. Automatic glue coating; C. Automatic replacement
  • D. Automatic accumulation counting out of the heap; E. Automatic binding (optional); F. Components

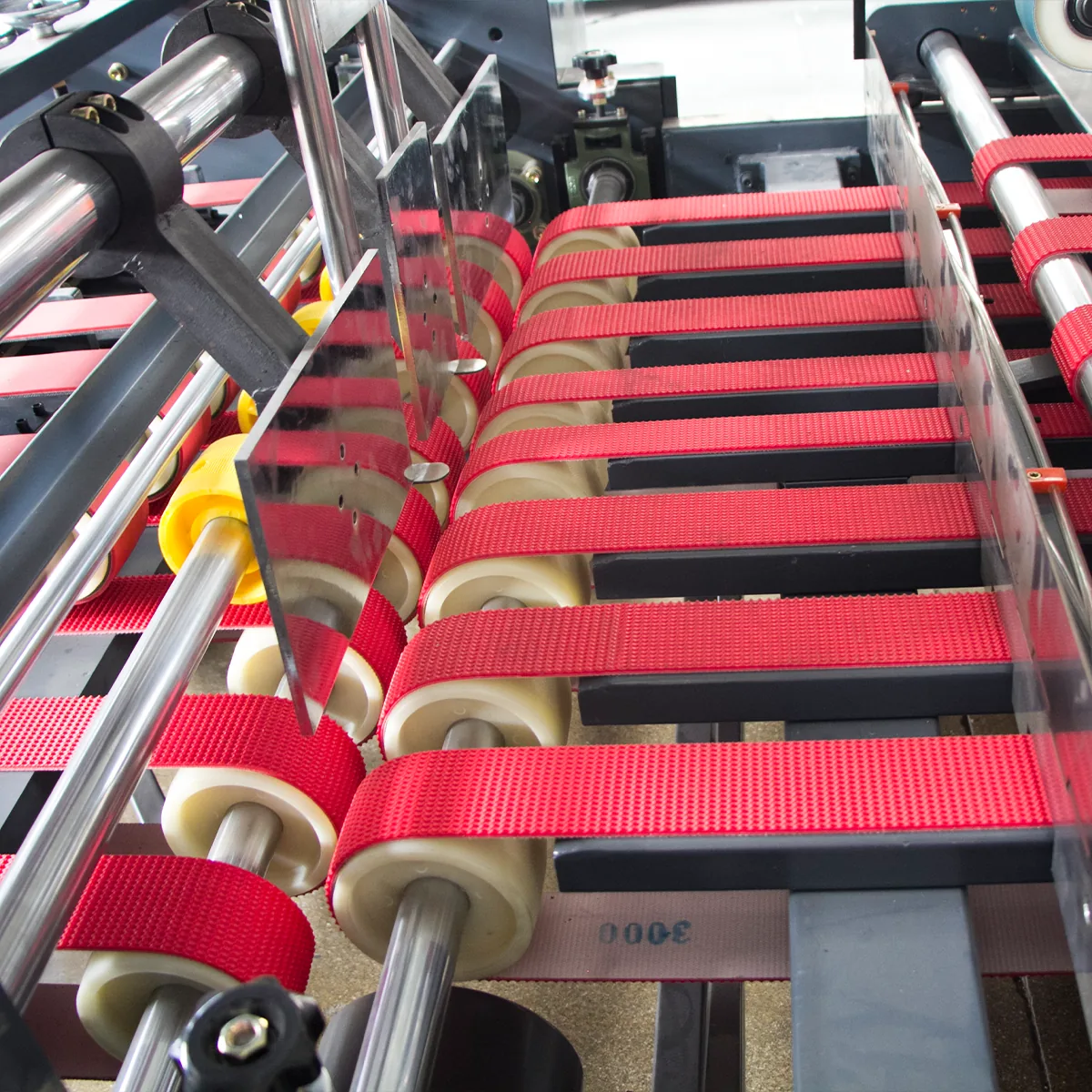

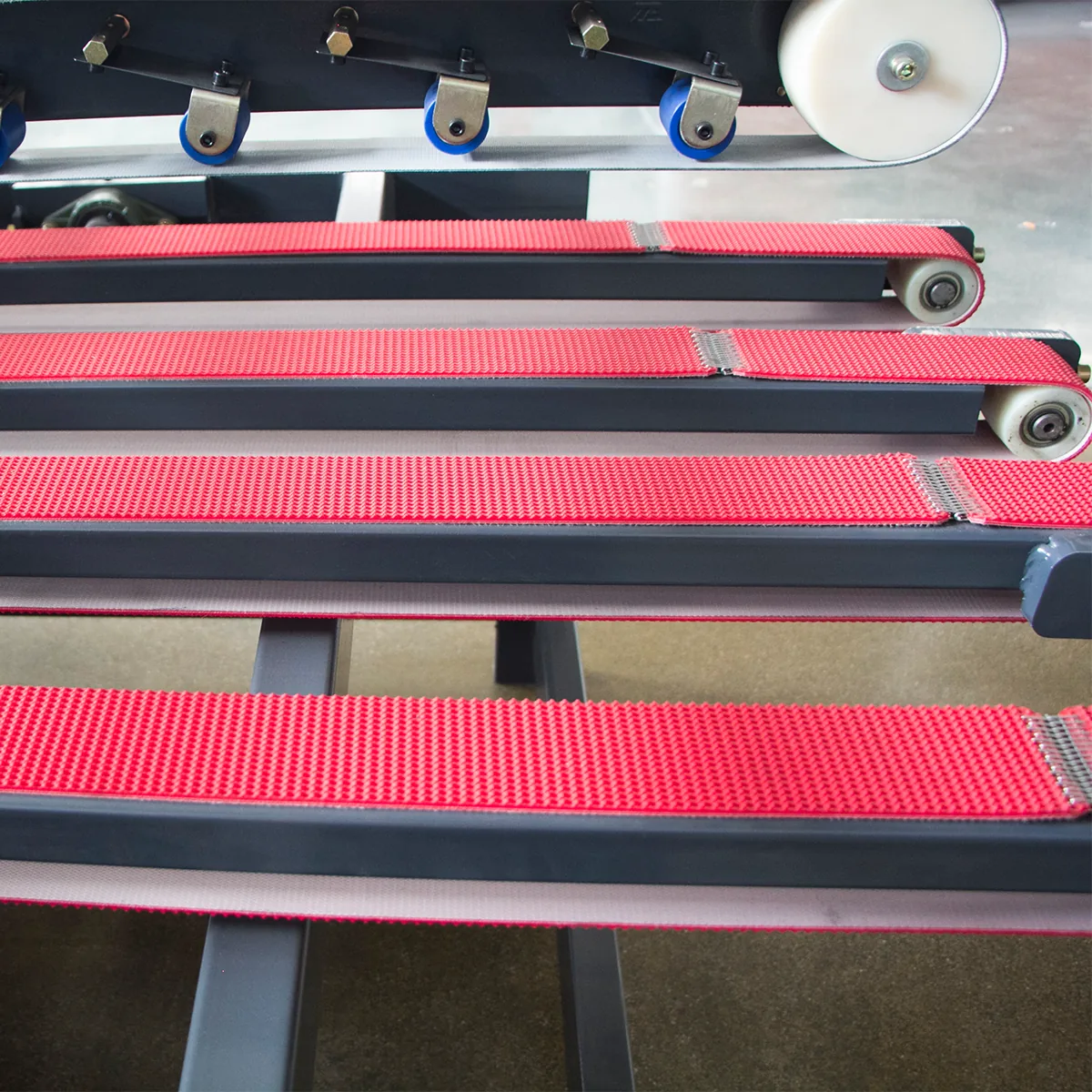

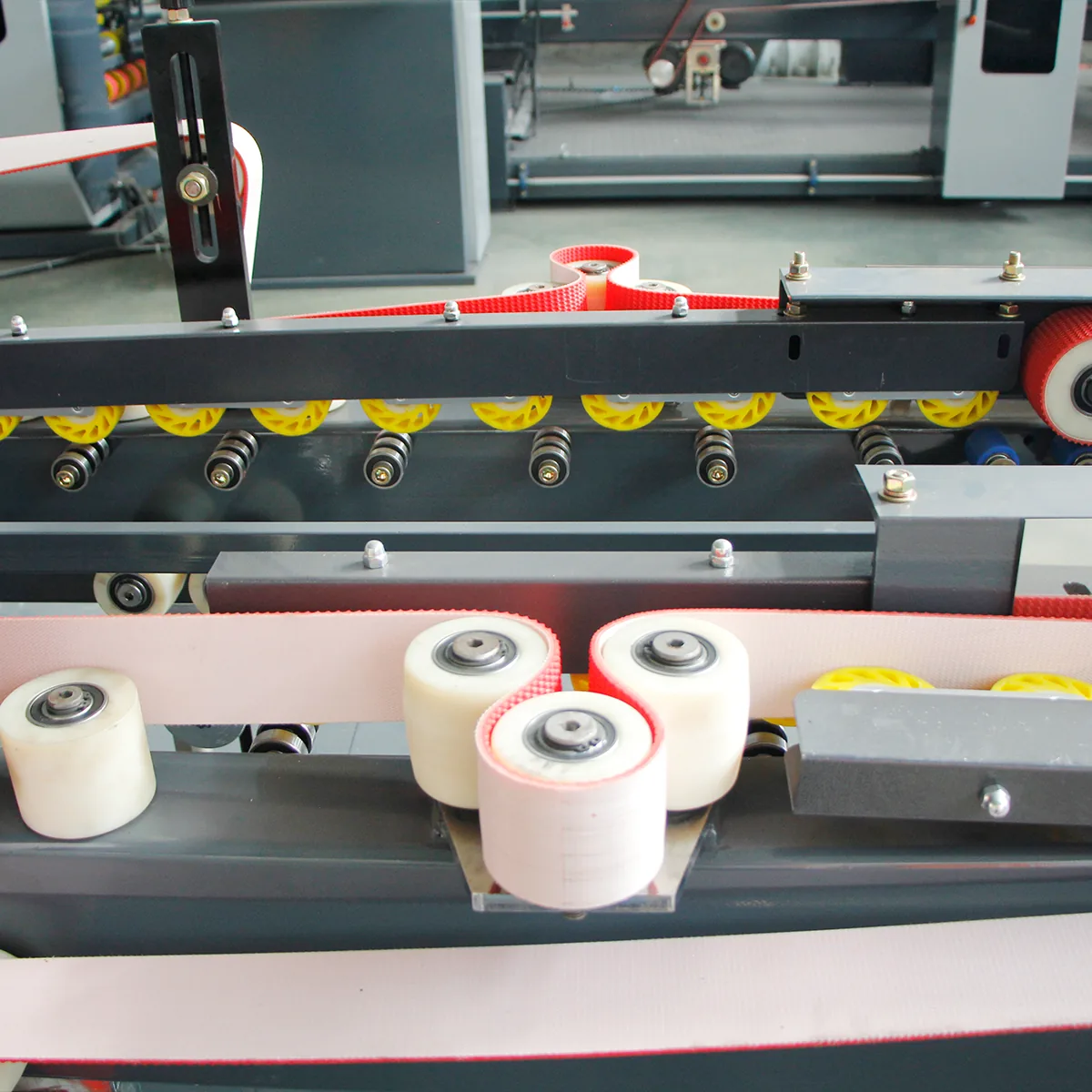

  • The cardboard adopts an imported cardboard belt to feed the cardboard, and automatically inputs the stacking code
  • The unique mechanical design can quickly and easily adjust, the side guide board, cardboard knife
  • The width of the adhesive is 20–30mm, and the gluing method is applied
  • the amount of glue can be controlled, the glue quantity is stable, the capacity is large
  • All materials are made of pure stainless steel, never rust, and are durable
Request a Quote β†’ View all in this range
Specifications

Technical specifications

SpecificationBMC-1224FGSBMC-1226FGS
Max. cardboard1200Γ—2400 mm1200Γ—2600mm
Min. cardboard170Γ—440mm170Γ—440mm
Dimension13500Γ— 3500Γ—1600 mm13500Γ—3700Γ—1600mm
Power required12 kW12 kW
Design Speed150m/min150m/min
Working Speed120m/min120m/min
Stitching Speed800 stitches/min800 stitches/min
Min A130 mm130 mm
Max A750 mm850 mm
Min B40 mm40 mm
Max B450 mm550 mm
Min H170 mm170 mm
Max H1200 mm1200 mm
Min F440 mm440 mm
Max F2400 mm2600 mm
Max Speed180 m/min180 m/min
Voltage220V/380V/440V220V/380V/440V
FAQ

Frequently Asked Questions

The BMC-1224FGS/1226FGS automates cardboard feeding, glue coating, folding and stacking in one pass β€” cutting labor needs, reducing skilled-worker dependence and saving floor space versus manual box gluing.

BMC-1224FGS handles cardboard up to 1200 Γ— 2400 mm, while BMC-1226FGS extends to 1200 Γ— 2600 mm. Both share the same minimum size and adjustable A/B/H/F dimension ranges for different box styles.

Design speed is 150 m/min with a working speed of 120 m/min, plus stitching at up to 800 stitches/min when the optional binding module is fitted.

The adhesive strip width is 20–30 mm, with controllable glue volume β€” keeping gluing consistent at large output volumes while minimizing waste.

All structural materials are pure stainless steel, which resists rust and corrosion and extends the machine's service life under continuous production.
